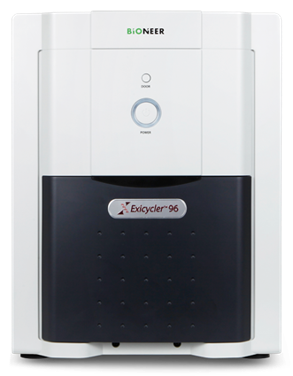

ExiCycler™96 V4 Real-Time Quantitative Thermal Block
Exicycler™ 96 is a superior 96-well PCR system designed for real-time qPCR applications demanding the highest performance. With the various modules, various diagnosis is available such as viral load monitoring, gene expression analysis and SNP genotyping.
| Weight | 39 kg |
|---|---|
| Certification | CE, FDA |
| Incoterms | EXW |
$32,000.00
Applications
1. COVID-192. AIDS3. Hepatitis4. Sexually Transmitted Infection5. Transplantation Related Virus6. Respiratory Disease7. Tuberculosis8. Gastrointestinal Disease9. Mosquito-borne Disease10. Genotyping
Specifications
| Dimension (W x D x H) | 35.5 x 54 x 47 cm(13.98 x 21.26 x 18.50 in) |
| Weight | 39 kg (85.99 lbs) |
| Sample capacity/size | Opaque 96-well PCR Plate/ 0.2 ml Opaque White 8-strip PCR Tube |
| Sample volume | 20~100 ㎕ (50 ㎕ recommended) |
| Power consumption | 100 - 240 VAC, 50/60 Hz, Max 800 VA |
| Operating temperature | 15 ~ 35℃ (59 ~ 95℉) |
| Operating humidity | 20 ~ 80%, no condensation |
| Thermo module specifications | |
| Method of heating/cooling | Peltier |
| Temperature range | 4.0 ~ 99.9°C (39.2 ~ 211.82℉) |
| Max ramp rate | 4.5°C/sec (8.1℉/sec) |
| Temperature accuracy | ± 0.3°C (± 0.54℉) |
| Temperature uniformity | ± 0.3°C (± 0.54℉) |
| Lid temperature | 90 ~ 120°C (194 ~ 248℉) |
| Temperature differential range | 1 ~ 20°C (1.8 ~ 36℉) |
| Temperature increment range | 0.1°C ~ 2.0°C (0.18 ~ 3.6℉) |
| Time increment range | 1 sec ~ 60 sec |
| Gradient range | 20°C ~ 95°C (68 ~ 203 ℉) |
| Ramp rate control | 1~100% |
| Computer specifications | |
| Operating system | Window 7 & 10 (32/64 bit OS) |
| Processor speed | Intel Dual Core E2160 (1.8GHz) or higher |
| Memory | 1GB or higher |
| Communication port | USB 2.0 high speed |
| Screen resolution | 1280X1024 or higher |
| Optical specifications | |
| Light source | Short arc lamp (120W) |
| Sensor | 16 bit 2D CCD |
| Excitation filter/emission filter | 5 sets* |
Additional information
| Weight | 39 kg |
|---|---|
| Certification | CE, FDA |
| Incoterms | EXW |
