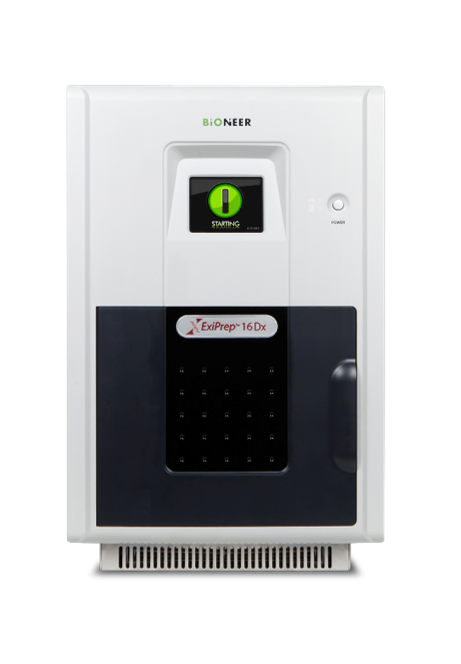

ExiPrep™16Dx (extraction machine)

ExiPrep™16 Dx is an automated nucleic acid extraction and purification instrument designed to extract DNA or RNA from various clinical samples including whole blood, serum, plasma, swab samples, urine etc. ExiPrep™16 Dx is able to handle up to 16 clinical samples with pre-programmed protocols for reproducible results and providing an automatic pipetting function for true hands-off operation.

Weight 27 kg
Certification

CE

Incoterms

EXW

$18,000.00

Features

1. Easy-to-use Touchscreen and TCP/IP Networking
The 3.5” touchscreen maximizes efficiency by offering an intuitive interface for operation such as selecting protocols and controlling the UV sterilization lamp. Multiple ExiPrep™16 Dx units can be operated in parallel with its TCP/IP network capability. In addition, with the Exicycler™ 96 Real-Time Quantitative Thermal Block, the centrally controlled molecular diagnostic platform ExiStation™ can be configured.
ExiPrep16Dx_figure1

2. Pre-programmed Protocols
ExiPrep™16 Dx has pre-programmed protocols optimized for the target nucleic acid and clinical sample type. The system allows for up to 990 unique protocols, for optimal extraction conditions and outstanding results. With the release of new and or improved kits, up-to-date protocols can be downloaded and updated through the network connection port.
ExiPrep16Dx_figure2

3. Automatic UV-lamp Sterilization
The UV sterilization lamp can be set to sterilize the instrument chamber before and after extraction runs, thereby eliminating any concern of inter-assay cross-contamination.
ExiPrep16Dx_figure3

4. Built-in Contamination Shield
Sits beneath the pipette tips when the ExiPrep™16 Dx is moving across the plate – eliminating the possibility of intra-assay cross-contamination.

5. Built-in Heating & Magnetic Block
The ExiPrep™16 Dx includes a dual-purpose heating/magnetic block. The heating increases sample lysis efficiency and therefore maximizes extraction yield and purity. The magnetic block allows the beads to bind with greater affinity, allowing increased bead concentration and greater surface area for maximal nucleic acid binding and recovery.

6. Built-in Cooling Block
The built-in cooling block allows eluted nucleic acids and diagnostic kits to be kept at a stable 4°C overnight within the instrument, ensuring the integrity of your samples.

7. Individual Sample Loading Tubes
User-induced cross-contamination is the single biggest source of contamination. To prevent cross-contamination during the sample loading process, individual sample loading tubes are provided. Dropping or spilling a sample no longer affects the rest of the samples.

8. Attachable Tip protector
ExiPrep™16 Dx prevents even the smallest possibility of cross-contamination: convection-induced aerosol formation. Considering that a relatively high-concentration 10 picoliter droplet that is invisible to the naked eye is able to cause a significant false-positive result, the Tip protector prevents this type of contamination from ever occurring.



Specifications

  Dimensions (W X H X D)320 mm x 500 mm x 535 mm
  Weight27 kg
  Temperature range15-30°C
  Humidity range20-80%, no condensation
  Operating systemStandalone or PC
  User interface320 x 240 touch screen graphic LCD
  Input voltage100 – 240 VAC
  Frequency50 / 60 Hz
  UV sterilization15 minute cycle
  CommunicationsTCP/IP protocol
  Heating block40-90°C



Key Patents

Title of the InventionApplication countryStatus
Automatic purification appratus for biological sample preparationKRRegistered / 1307978
The automatic purification apparatus, multi well plate kit and isolation method of nucleic acid from biological samplesKRRegistered / 1025135
The automatic purification apparatus, multi well plate kit and isolation method of nucleic acid from biological samplesUS/JP/CNApplied
Automatic purification apparatus with magnetic field applying part for biological samples preparation and isolation method of nucleic acid from biological samplesKRApplied
Automatic nucleic acid purification apparatus and method for aerosol-protectingKRApplied
